Wireless thermometer, hygrometer, Sigfox IoT
The device measures the temperature and humidity from the built-in internal sensor. It is characterized by a simple compact design with the possibility of installation directly into the measured space. The sensor can be used with a suitable sensor cap even in more demanding conditions.

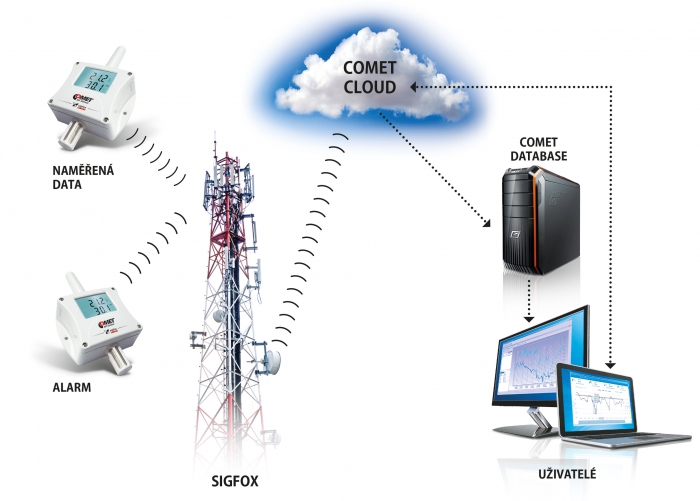

The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.
The instrument can monitor up to 2 alarm limits of the measured variable. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).
Highlights:
- wireless transmission of measured values and alarm states
- battery power with low battery indication (battery life 4 months to 7 years)
- external power with optional accessories
- remote setting of the device from COMET Cloud (maximum once a day)
- IP65
- traceable calibration certificate in accordance with EN ISO / IEC 17025
The availability of Sigfox network in a particular location
Check your Sigfox network availability before you buy your device. COMET devices in the Sigfox network can be used anywhere in the RC1 zone. Learn more about Sigfox (RC) Radio Zones.
-
codeW3810
-
Warranty3 years
- 1 230.00 AED
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +60 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s)
10 minutes
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±1.8 % RH from 0 to 90 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +60 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal temperature and humidity sensor
Message transmission interval
adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Alarm message sending interval
10 minutes
Operating frequency
868 MHz
Maximum transmission power
25mW
Sigfox radiation class
0U
Radio configuration zone
RC1 (operation is possible in Europe, Iran, Oman and South Africa)
Typical range of transmitter
50 km in the field, 3 km in the city
Power
Lithium battery 3.6 V, AA size
Protection class
IP65 electronics, IP40 sensors
Dimensions
126 x 89 x 40mm
Weight (including batteries)
150g
Warranty
3 years
Battery lifetime
| Sending interval | 10 minutes | 20 minutes | 30 minutes | 1 hour | 3 hours | 6 hours | 12 hours | 24 hours |
|---|---|---|---|---|---|---|---|---|
| lithium battery A4203 - 2200mAh | 4 months | 7 months | 11 months | 1,5 years | 3,5 years | 5 years | 6 years | 7 years |
| battery holder (SP015) + 1x lithium battery A4206 - 8500mAh | 1 year | 2 years | 3 years | 5 years | 10 years | > 10 years | > 10 years | > 10 years |
| battery holder (SP015) + 2x lithium battery A4206 - 8500mAh | 2 years | 4 years | 6 years | 10 years | > 10 years | > 10 years | > 10 years | > 10 years |
Optional accessories and download
Lithium battery 3,6V/AA
code
A4203
Price
120.00 AED
In stock
141 pcs
Lithium battery 3,6V/C
code
A4206
Price
150.00 AED
In stock
on request
Adapter for external supply of IoT sensor with radio output to Sigfox network
code
SP014
Price
190.00 AED
In stock
on request
Holder for 3.6 V lithium battery
code
SP015
Price
300.00 AED
In stock
15 pcs
Holder for 3.6 V lithium battery with magnets
code
SP015M
Price
340.00 AED
In stock
4 pcs
Accredited temperature and relative humidity calibration
code
SLU003
Price
370.00 AED
In stock
on request
Sigfox Access Station Micro
code
SMBS-T4
Price
On request
In stock
on request
cable for transmitter adjustment via USB port
code
SP003
Price
230.00 AED
In stock
40 pcs
Holder for Sigfox sensors
code
SP017
Price
On request
In stock
2 pcs
Holder for mounting the COMET Transmitter on magnetic surfaces
code
SP102
Price
80.00 AED
In stock
on request
sintered bronze sensor protection
code
F0000
Price
150.00 AED
In stock
on request
PTFE sensor protection, white
code
F5300
Price
260.00 AED
In stock
on request
COMET Cloud
code
cloud
Price
On request
In stock
yes
COMET Cloud Lite for Android & iOS
code
cloud_app
Price
On request
In stock
yes
COMETEO Professional Thermometer Screen for Weather Station Sensor
code
F8000
Price
1 410.00 AED
In stock
on request
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Safety Information
Declaration of Conformity
Catalogs
CATALOG - IoT Sensors powered by Sigfox
Catalogue Sheets - COMET Sigfox Sensors
