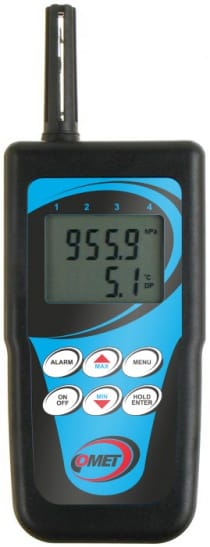

Thermo-hygro-barometer
Thermometer, hygrometer, barometer is designed for measurement and datalogging of temperature, relative humidity and atmospheric pressure into the internal non-volatile memory.
Also barometric pressure tendency reading available. Free PC program enables to transfer recorded data to the computer for evaluation. LCD backlight.
Audio and optical alarm of measured values.
Memory of minimum and maximum measured values.
Function Hold - manual storing of actual values for later displaying.
Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.
Simultaneous reading of temperature and air relative humidity, dew point temperature and air pressure reading selectable, built-in sensors, barometric pressure tendency reading for last 3 hours.
-
codeD4130
-
Warranty3 years
- 2 190.00 AED
Technical data
Measured value
Temperature
Relative humidity
Atmospheric pressure
TEMPERATURE SENSOR
Measuring range
-10 to +60 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
5 to 95 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-40 to +60 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
ATMOSPHERIC PRESSURE SENSOR
Measuring range
800 to 1100 hPa
Accuracy
±2hPa at 23°C
Resolution
0.1 hPa
GENERAL TECHNICAL DATA
Operating temperature
-10 to +60 °C
Channels
internal sensor of temperature, humidity sensor and atmospheric pressure
Acoustic signalization + backlit LCD
YES
Memory
16,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Measuring interval and display reading refresh
0.7 to 5 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life
approx. 6 months
Protection class
IP20
Dimensions (without connectors)
191 x 71 x 27 mm
Weight (including batteries)
approx. 155 g
Warranty
3 years
Optional accessories and download
ac/dc adapter 230Vac to 12Vdc/1A, EU
code
A1515eu
Price
120.00 AED
In stock
97 pcs
ac/dc adapter 230Vac to 12Vdc/1A, UK
code
A1515uk
Price
120.00 AED
In stock
on request
ac/dc adapter 230Vac to 12Vdc/1A, US
code
A1515us
Price
120.00 AED
In stock
on request
NiMH rechargeable batt. 9V/200mAh
code
A3400
Price
120.00 AED
In stock
on request
Accredited temperature and relative humidity calibration
code
SLU003
Price
370.00 AED
In stock
on request
Accredited atmospheric pressure calibration
code
SLU006
Price
370.00 AED
In stock
on request
Transducer USB/RS232 complete
code
MP006
Price
230.00 AED
In stock
8 pcs
Mini USB cable, 2 meters
code
MP038
Price
On request
In stock
on request
Communication cable for COMMETER Dxxxx
code
QLOG015
Price
80.00 AED
In stock
10 pcs
Mini USB cable, 2 meters
code
MP038
Price
On request
In stock
on request
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Portable measuring instruments COMMETER
Catalogue Sheets - COMETTER
