IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 4G modem
GSM datalogger is designed to record 3 current inputs and 1 binary input. In case of exceeded set limits, SMS and JSON messages can be sent via 4G data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.
It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.
GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
-
codeU6841G
-
Warranty3 years
- 3 450.00 AED
Technical data
Measured value
CURRENT INPUT
BINARY INPUT
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
Contact resistance in the „switched-off“ state:> 2 MOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s
GSM MODEM PARAMETERS
LTE FDD B1/B3/B5/B7/B8/B20
GENERAL TECHNICAL DATA
cyclic - after filling memory oldest data is overwritten by new
Optional accessories and download
AC/DC adapter 230Vac to 5Vdc/2.1 A, EU
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK
AC/DC adapter 230Vac to 5Vdc/2.1 A, US
Accupack A8205 for dataloggers "U"
USB-C cable, 1 meter
Wall holder for datalogger
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces
COMET Database
COMET Cloud
COMET Cloud Lite for Android & iOS
COMET VISION - Analytical Software for Dataloggers and Multiloggers
Database Viewer for Comet Database
Magnetic door contact SA-200-A
Magnetic door contact with cable length 10m
Magnetic door contact with cable length 15m
Magnetic door contact with cable length 2m
Magnetic door contact with cable length 20m
Magnetic door contact with cable length 30m
Magnetic door contact with cable length 5m
Power detector SP008
IoT ready Flat Rate SIM Card

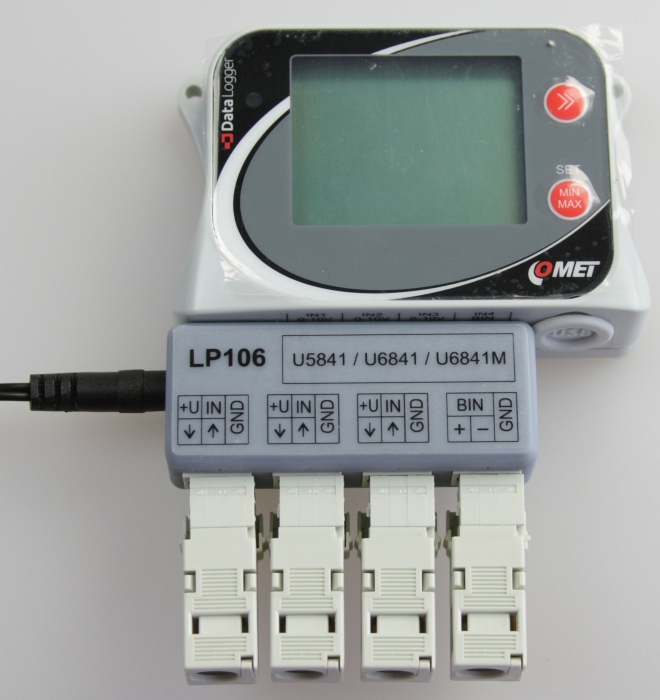

Connection adapter for Ux841 dataloggers
