IoT Wireless Temperature Datalogger for 4 external probes, with built-in 4G modem and Flat Rate SIM Card

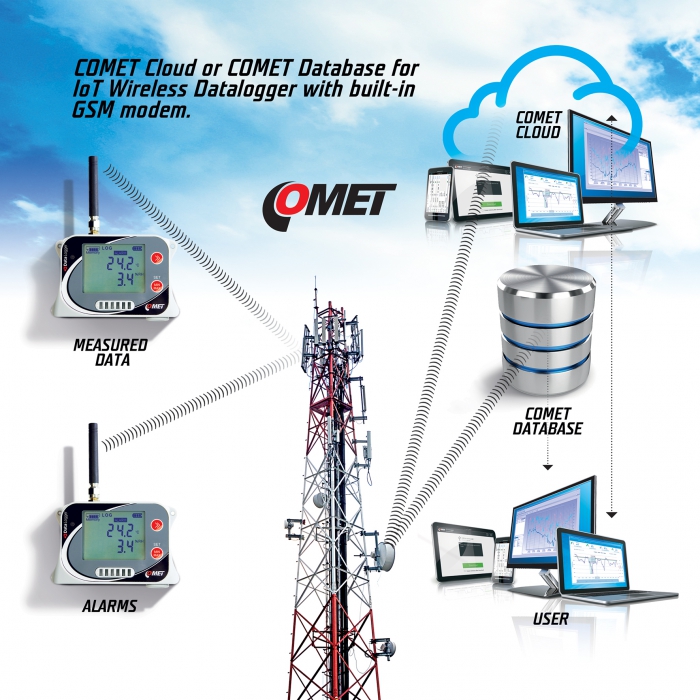

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.

GSM Datalogger is designed to record temperature from four external Pt1000 probes connected to the terminal board. In case of exceeded set limits e-mail is sent, SMS and JSON messages can be sent via 4G data connection.

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

  • code
    U0141TGsim
  • Warranty
    3 years
  • On request

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C
Accuracy ±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe

GSM MODEM PARAMETERS

LTE Cat 1 LTE FDD/GSM/GPRS/EDGE
Supported network types GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 4x external temperature probe
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud from 5 minutes
Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class IP20
Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries) approx. 270 g
Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/0, without connector

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C
code SN104
Price 190.00 AED
In stock on request
Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105
Price 190.00 AED
In stock 153 pcs
Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108
Price 260.00 AED
In stock 42 pcs
Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113
Price 340.00 AED
In stock 82 pcs
Temperature probe 2061-250/0, without connector

Temperature probe 2061-250/0, without connector

Temperature range: -30 to 250°C
code SN147
Price 670.00 AED
In stock on request
Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature range: -30 to 250°C
code SN148
Price 740.00 AED
In stock on request
Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature range: -30 to 250°C
code SN151
Price 890.00 AED
In stock 3 pcs
Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature range: -30 to 250°C
code SN156
Price 1 150.00 AED
In stock on request
Temperature probe Pt1000TG7/0, without connector

Temperature probe Pt1000TG7/0, without connector

Temperature range: -50 to 200°C
code SN164
Price 260.00 AED
In stock 1 pcs
Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165
Price 300.00 AED
In stock on request
Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166
Price 340.00 AED
In stock 4 pcs
Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167
Price 370.00 AED
In stock 3 pcs
Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168
Price 520.00 AED
In stock 3 pcs
Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169
Price 860.00 AED
In stock 3 pcs
Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170
Price 300.00 AED
In stock 2 pcs
Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175
Price 490.00 AED
In stock 18 pcs
Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178
Price 600.00 AED
In stock 7 pcs
Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179
Price 630.00 AED
In stock on request
Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180
Price 670.00 AED
In stock 3 pcs
Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181
Price 740.00 AED
In stock on request
Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182
Price 300.00 AED
In stock 13 pcs
Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183
Price 370.00 AED
In stock 9 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185
Price 150.00 AED
In stock 8 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186
Price 190.00 AED
In stock 12 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187
Price 190.00 AED
In stock 18 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188
Price 260.00 AED
In stock 17 pcs
Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199
Price 150.00 AED
In stock 11 pcs
Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200
Price 150.00 AED
In stock 28 pcs
Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201
Price 150.00 AED
In stock 65 pcs
Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202
Price 190.00 AED
In stock 116 pcs
Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203
Price 260.00 AED
In stock 24 pcs
Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204
Price 300.00 AED
In stock 76 pcs
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Price 410.00 AED
In stock 1 pcs
Stick-in probe 2091-250/0, without connector, cable 1 meter

Stick-in probe 2091-250/0, without connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210
Price 670.00 AED
In stock 1 pcs
Stick-in probe 2091-250/0, without connector, cable 2 meters

Stick-in probe 2091-250/0, without connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211
Price 710.00 AED
In stock 1 pcs
Stick-in probe 2091-250/0, without connector, cable 5 meters

Stick-in probe 2091-250/0, without connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212
Price 860.00 AED
In stock 6 pcs
Stick-in probe 2091-250/0, without connector, cable 10 meters

Stick-in probe 2091-250/0, without connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213
Price 1 110.00 AED
In stock 2 pcs
Special probe 2071-80/0, without connector

Special probe 2071-80/0, without connector

Temperature range: -30 to 80°C
code SN214
Price 1 000.00 AED
In stock 4 pcs
Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232
Price 300.00 AED
In stock 5 pcs
Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233
Price 340.00 AED
In stock on request
Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234
Price 410.00 AED
In stock 10 pcs
Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239
Price 600.00 AED
In stock 8 pcs
Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240
Price 630.00 AED
In stock 30 pcs
Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241
Price 820.00 AED
In stock 30 pcs
Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters

Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242
Price 1 110.00 AED
In stock 18 pcs
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Price 230.00 AED
In stock 21 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Price 260.00 AED
In stock 30 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Price 340.00 AED
In stock 37 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256
Price 490.00 AED
In stock 15 pcs
Ambient temperature probe, 201-80/C

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C
code SN258
Price 150.00 AED
In stock 14 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Price 340.00 AED
In stock 1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264
Price 340.00 AED
In stock 2 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265
Price 410.00 AED
In stock on request
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266
Price 490.00 AED
In stock 1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267
Price 600.00 AED
In stock on request
Temperature probe Pt1000TR050M/0, without connector, cable 1 meter

Temperature probe Pt1000TR050M/0, without connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270
Price 450.00 AED
In stock 2 pcs
Temperature probe Pt1000TR050M/0, without connector, cable 2 meters

Temperature probe Pt1000TR050M/0, without connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271
Price On request
In stock 5 pcs
Temperature probe Pt1000TR050M/0, without connector, cable 5 meters

Temperature probe Pt1000TR050M/0, without connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272
Price 670.00 AED
In stock 7 pcs
Temperature probe Pt1000TR050M/0, without connector, cable 10 meters

Temperature probe Pt1000TR050M/0, without connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273
Price 970.00 AED
In stock on request

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
Price 120.00 AED
In stock 37 pcs
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
Price 120.00 AED
In stock on request
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Price 120.00 AED
In stock on request
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

code A8205
Price 340.00 AED
In stock on request

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price 260.00 AED
In stock on request

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053
Price 120.00 AED
In stock on request

Wall holder for datalogger

Wall holder for datalogger

code LP100
Price 150.00 AED
In stock 50 pcs
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103
Price 80.00 AED
In stock 25 pcs

COMET Database

COMET Database

code CDB
Price 2 780.00 AED
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
Price On request
In stock yes
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Price FREE
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price 490.00 AED
In stock yes

IoT ready Flat Rate SIM Card

IoT ready Flat Rate SIM Card

code LP105
Price 190.00 AED
In stock on request

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.90 MB
download-icon Quick Start Manual
958.40 KB
download-icon Safety Information
127.81 KB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Declaration of Conformity
104.78 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB
download-icon CATALOG - GSM loggers
3.00 MB
download-icon Catalogue Sheets - COMET GSM Data Loggers
2.33 MB

Related products

COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
COMET Database

COMET Database

code CDB
Price 2 780.00 AED
In stock yes
COMETEO Professional Thermometer Screen for Weather Station Sensor

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000
Price 1 410.00 AED
In stock on request
IoT Wireless Temperature Datalogger for 4 external probes, with built-in 4G modem

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 4G modem

code U0141TG
Price 3 300.00 AED
In stock 7 pcs
IoT Wireless Temperature Datalogger for 4 external probes, with built-in 4G modem and Flat Rate SIM Card

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 4G modem and Flat Rate SIM Card

code U0141Gsim
Price 3 560.00 AED
In stock on request
IoT Wireless Temperature Datalogger for 2 external probes, with built-in 4G modem and Flat Rate SIM Card

IoT Wireless Temperature Datalogger for 2 external probes, with built-in 4G modem and Flat Rate SIM Card

code U0121Gsim
Price 3 410.00 AED
In stock on request
IoT Wireless Temperature Datalogger, with built-in sensor, 4G modem and Flat Rate SIM Card

IoT Wireless Temperature Datalogger, with built-in sensor, 4G modem and Flat Rate SIM Card

code U0110Gsim
Price On request
In stock on request
IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in 4G modem and Flat Rate SIM Card

IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in 4G modem and Flat Rate SIM Card

code U0843Gsim
Price On request
In stock on request
IoT Wireless Temperature and Relative Humidity Datalogger, with built-in 4G modem and Flat Rate SIM Card

IoT Wireless Temperature and Relative Humidity Datalogger, with built-in 4G modem and Flat Rate SIM Card

code U3120Gsim
Price On request
In stock on request
IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 4G modem and Flat Rate SIM Card

IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 4G modem and Flat Rate SIM Card

code U3121Gsim
Price On request
In stock on request
IoT Wireless Temperature and Relative Humidity Datalogger with connector for other temperature probe, with built-in 4G modem  and Flat Rate SIM Card

IoT Wireless Temperature and Relative Humidity Datalogger with connector for other temperature probe, with built-in 4G modem and Flat Rate SIM Card

code U3631Gsim
Price On request
In stock on request
IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 4G modem and Flat Rate SIM Card

IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 4G modem and Flat Rate SIM Card

code U4440Gsim
Price On request
In stock on request
IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 4G modem and Flat Rate SIM Card

IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 4G modem and Flat Rate SIM Card

code U6841Gsim
Price 3 590.00 AED
In stock on request
IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 4G modem and Flat Rate SIM Card

IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 4G modem and Flat Rate SIM Card

code U7844Gsim
Price On request
In stock on request
IoT Wireless CO2 datalogger with built-in sensor, 4G modem and Flat Rate SIM Card

IoT Wireless CO2 datalogger with built-in sensor, 4G modem and Flat Rate SIM Card

code U8410Gsim
Price 4 440.00 AED
In stock on request
Wireless thermometer, hygrometer barometer, Sigfox IoT

Wireless thermometer, hygrometer barometer, Sigfox IoT

code W7810
Price 1 670.00 AED
In stock on request
