Thermometer with Ethernet interface and relays
Temperature Ethernet sensor for Pt1000 sensors with two relay outputs.
Sensor H4531 is designed for online monitoring of temperature. Three binary inputs to detection of two-states signals are the advantage. Other devices are controlled by two relay outputs.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
-
codeH4531
-
Warranty3 years
- 2 110.00 AED
Technical data
Measured value
Temperature
Two-state signal
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +600 °C
Accuracy
±0.2 °C
Resolution
0.1 °C
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA

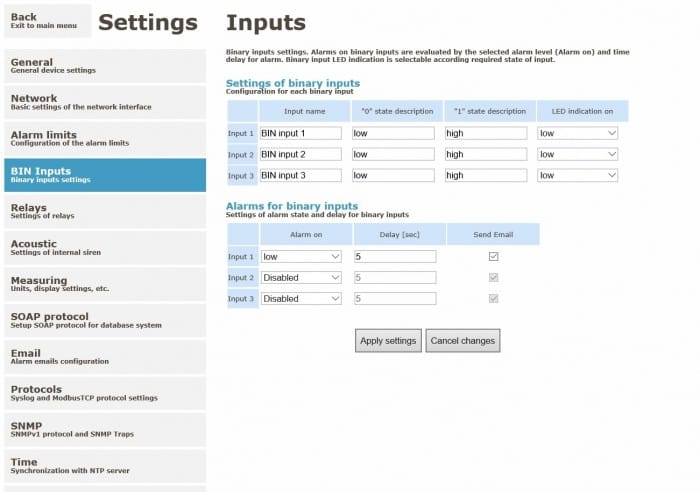

BINARY INPUTS
Quantity
3
Signal for binary inputy
dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.
Inputs are not galvanically isolated.
Minimum pulse duration on binary input
500 ms
Voltage across open contact
< 3,3 V
Low voltage level
0 to +0,5 V
High voltage level
+3,0 to +30 V
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x external temperature probe
Acoustic alarm
from built-in beeper - switchable
Output
Ethernet
Measuring interval
2 s
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail (SMTP authentication is supported), SNMP Trap, Syslog
Power
9-30 Vdc
Protection class
IP40
Dimensions
136 x 117 x 45 mm
Weight
approx. 340 g
Warranty
3 years
Optional accessories and download
Temperature probe Pt1000TG8/0, without connector
Temperature range: -80 to 200°C
code
SN104
Price
190.00 AED
In stock
on request
Temperature probe Pt1000TG8/0, without connector, cable 2 meters
Temperature range: -80 to 200°C
code
SN105
Price
190.00 AED
In stock
153 pcs
Temperature probe Pt1000TG8/0, without connector, cable 5 meters
Temperature range: -80 to 200°C
code
SN108
Price
260.00 AED
In stock
42 pcs
Temperature probe Pt1000TG8/0, without connector, cable 10 meters
Temperature range: -80 to 200°C
code
SN113
Price
340.00 AED
In stock
82 pcs
Temperature probe 2061-250/0, without connector
Temperature range: -30 to 250°C
code
SN147
Price
670.00 AED
In stock
on request
Temperature probe 2061-250/0, without connector, cable 2 meters
Temperature range: -30 to 250°C
code
SN148
Price
740.00 AED
In stock
on request
Temperature probe 2061-250/0, without connector, cable 5 meters
Temperature range: -30 to 250°C
code
SN151
Price
890.00 AED
In stock
3 pcs
Temperature probe 2061-250/0, without connector, cable 10 meters
Temperature range: -30 to 250°C
code
SN156
Price
1 150.00 AED
In stock
on request
Temperature probe Pt1000TG7/0, without connector
Temperature range: -50 to 200°C
code
SN164
Price
260.00 AED
In stock
1 pcs
Temperature probe Pt1000TG7/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN165
Price
300.00 AED
In stock
on request
Temperature probe Pt1000TG7/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN166
Price
340.00 AED
In stock
4 pcs
Temperature probe Pt1000TG7/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN167
Price
370.00 AED
In stock
3 pcs
Temperature probe 2304-220/0, without connector, cable 1 meter
Temperature range: -30 to 220°C
code
SN168
Price
520.00 AED
In stock
3 pcs
Temperature probe 2021-150/0, without connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN169
Price
860.00 AED
In stock
3 pcs
Temperature probe PTS350A-2/0, without connector, cable 2 meters
Temperature range: -30 to 130°C
code
SN170
Price
300.00 AED
In stock
2 pcs
Temperature probe 2034-220/0, without connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN175
Price
490.00 AED
In stock
18 pcs
Temperature probe 2061-200/0, without connector, cable 1 meter
Temperature range: -50 to 200°C
code
SN178
Price
600.00 AED
In stock
7 pcs
Temperature probe 2061-200/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN179
Price
630.00 AED
In stock
on request
Temperature probe 2061-200/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN180
Price
670.00 AED
In stock
3 pcs
Temperature probe 2061-200/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN181
Price
740.00 AED
In stock
on request
Temperature probe PTS350A-5/0, without connector, cable 5 meters
Temperature range: -30 to 130°C
code
SN182
Price
300.00 AED
In stock
13 pcs
Temperature probe PTS350A-10/0, without connector, cable 10 meters
Temperature range: -30 to 130°C
code
SN183
Price
370.00 AED
In stock
9 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN185
Price
150.00 AED
In stock
8 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 2 meters
Temperature range: -30 to 80°C
code
SN186
Price
190.00 AED
In stock
12 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 5 meters
Temperature range: -30 to 80°C
code
SN187
Price
190.00 AED
In stock
18 pcs
Temperature probe Pt1000TGL40/0, without connector, cable 10 meters
Temperature range: -30 to 80°C
code
SN188
Price
260.00 AED
In stock
17 pcs
Temperature probe Pt1000TR160/0, without connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN199
Price
150.00 AED
In stock
11 pcs
Temperature probe Pt1000TR160/0, without connector, cable 2 meters
Temperature range: -30 to 80°C
code
SN200
Price
150.00 AED
In stock
28 pcs
Temperature probe Pt1000TR160/0, without connector, cable 5 meters
Temperature range: -30 to 80°C
code
SN201
Price
150.00 AED
In stock
65 pcs
Temperature probe Pt1000TR160/0, without connector, cable 10 meters
Temperature range: -30 to 80°C
code
SN202
Price
190.00 AED
In stock
116 pcs
Temperature probe Pt1000TR160/0, without connector, cable 15 meters
Temperature range: -30 to 80°C
code
SN203
Price
260.00 AED
In stock
24 pcs
Temperature probe Pt1000TR160/0, without connector, cable 20 meters
Temperature range: -30 to 80°C
code
SN204
Price
300.00 AED
In stock
76 pcs
PTS380K/0 temperature sensor with a stainless steel connection head and connector
Temperature range: -30 to 100°C
code
SN205
Price
410.00 AED
In stock
1 pcs
Stick-in probe 2091-250/0, without connector, cable 1 meter
Temperature range: -50 to 250°C
code
SN210
Price
670.00 AED
In stock
1 pcs
Stick-in probe 2091-250/0, without connector, cable 2 meters
Temperature range: -50 to 250°C
code
SN211
Price
710.00 AED
In stock
1 pcs
Stick-in probe 2091-250/0, without connector, cable 5 meters
Temperature range: -50 to 250°C
code
SN212
Price
860.00 AED
In stock
6 pcs
Stick-in probe 2091-250/0, without connector, cable 10 meters
Temperature range: -50 to 250°C
code
SN213
Price
1 110.00 AED
In stock
2 pcs
Special probe 2071-80/0, without connector
Temperature range: -30 to 80°C
code
SN214
Price
1 000.00 AED
In stock
4 pcs
Temperature probe Pt1000TG68/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN232
Price
300.00 AED
In stock
5 pcs
Temperature probe Pt1000TG68/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN233
Price
340.00 AED
In stock
on request
Temperature probe Pt1000TG68/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN234
Price
410.00 AED
In stock
10 pcs
Temperature probe Pt1000TR125/0, without connector, cable 1 meter
Temperature range: -190 to 150°C
code
SN239
Price
600.00 AED
In stock
8 pcs
Temperature probe Pt1000TR125/0, without connector, cable 2 meters
Temperature range: -190 to 150°C
code
SN240
Price
630.00 AED
In stock
30 pcs
Temperature probe Pt1000TR125/0, without connector, cable 5 meters
Temperature range: -190 to 150°C
code
SN241
Price
820.00 AED
In stock
30 pcs
Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters
Temperature range: -190 to 150°C
code
SN242
Price
1 110.00 AED
In stock
18 pcs
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 2 meters
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 5 meters
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector
Temperature range: -50 to 200°C
code
SN252
Price
230.00 AED
In stock
21 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN254
Price
260.00 AED
In stock
30 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN255
Price
340.00 AED
In stock
37 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN256
Price
490.00 AED
In stock
15 pcs
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C
Temperature range: -30 to 80°C
code
SN258
Price
150.00 AED
In stock
14 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263
Price
340.00 AED
In stock
1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264
Price
340.00 AED
In stock
2 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265
Price
410.00 AED
In stock
on request
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266
Price
490.00 AED
In stock
1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267
Price
600.00 AED
In stock
on request
Temperature probe Pt1000TR050M/0, without connector, cable 1 meter
Temperature range: -50 to 400°C
code
SN270
Price
On request
In stock
2 pcs
Temperature probe Pt1000TR050M/0, without connector, cable 2 meters
Temperature range: -50 to 400°C
code
SN271
Price
490.00 AED
In stock
5 pcs
Temperature probe Pt1000TR050M/0, without connector, cable 5 meters
Temperature range: -50 to 400°C
code
SN272
Price
670.00 AED
In stock
7 pcs
Temperature probe Pt1000TR050M/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
code
SN273
Price
970.00 AED
In stock
on request
ac/dc adapter 230Vac to 12Vdc/1A, EU
code
A1515eu
Price
120.00 AED
In stock
97 pcs
ac/dc adapter 230Vac to 12Vdc/1A, UK
code
A1515uk
Price
120.00 AED
In stock
on request
ac/dc adapter 230Vac to 12Vdc/1A, US
code
A1515us
Price
120.00 AED
In stock
on request
KIT-GSM with modem
code
KIT-GSM-W
Price
1 110.00 AED
In stock
on request
TL-POE10R - PoE splitter
code
TL-POE
Price
230.00 AED
In stock
12 pcs
300Mbps Wireless N Nano Router
code
TL-WIFI
Price
260.00 AED
In stock
6 pcs
Holder for mounting the COMET Transmitter on magnetic surfaces
code
SP103
Price
150.00 AED
In stock
4 pcs
COMET Database
code
CDB
Price
2 780.00 AED
In stock
yes
COMET Cloud
code
cloud
Price
On request
In stock
yes
COMET Cloud Lite for Android & iOS
code
cloud_app
Price
On request
In stock
yes
Database Viewer for Comet Database
code
DBV
Price
490.00 AED
In stock
yes
Motion detector JS20
code
JS20
Price
300.00 AED
In stock
5 pcs
The LD-12 flood detector
code
LD12
Price
230.00 AED
In stock
41 pcs
Magnetic door contact SA-200-A
code
SA200A
Price
80.00 AED
In stock
30 pcs
Magnetic door contact with cable length 10m
code
SA200A-10
Price
150.00 AED
In stock
on request
Magnetic door contact with cable length 15m
code
SA200A-15
Price
190.00 AED
In stock
on request
Magnetic door contact with cable length 2m
code
SA200A-2
Price
80.00 AED
In stock
on request
Magnetic door contact with cable length 20m
code
SA200A-20
Price
230.00 AED
In stock
on request
Magnetic door contact with cable length 30m
code
SA200A-30
Price
300.00 AED
In stock
on request
Magnetic door contact with cable length 5m
code
SA200A-5
Price
120.00 AED
In stock
on request
The optical smoke detector SD-283ST
code
SD280
Price
450.00 AED
In stock
8 pcs
Power detector SP008
code
SP008
Price
190.00 AED
In stock
on request
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price
40.00 AED
In stock
22 pcs
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Quick Start Manual
Declaration of Conformity
How to add WebSensor to COMET Cloud
MIB
Software development kit (SDK)
Catalogs
CATALOG - WebSensors with Ethernet output and relay Catalog
Catalogue Sheets - COMET Premium WebSensors & Regulators
Related products
COMET Database
code
CDB
Price
2 780.00 AED
In stock
yes
Database Viewer for Comet Database
code
DBV
Price
490.00 AED
In stock
yes
Thermometer with Ethernet interface and relays
code
H0530
Price
2 190.00 AED
In stock
3 pcs
Rack mount thermometer with Ethernet interface and relays
code
H4531R
Price
2 150.00 AED
In stock
on request
Wireless IoT thermometer for external probe, Sigfox
code
W0811
Price
1 110.00 AED
In stock
on request
IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem
code
U0141M
Price
3 260.00 AED
In stock
4 pcs
