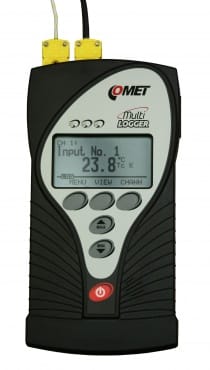

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Universal datalogger with 4 inputs for thermocouples K, J, S, B, T, N.
Multilogger can be installed permanently to Ethernet network or work as portable device.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its Inputs.

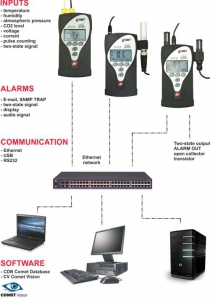

Datalogger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.



  • code
    M1200
  • Warranty
    3 years
  • 4 700.00 AED
Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C
Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C
DC VOLTAGE
Measuring range -60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Channels 4x external temperature probe
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit
Communication interface Ethernet, USB, RS232
Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
Alarm protocols E-Mail
Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Optional accessories and download

Thermocouple "K" surface probe, CP500

Thermocouple "K" surface probe, CP500

Temperature range: -65 to 500°C
code CP500
Price 450.00 AED
In stock 7 pcs
Thermocouple "K" stick-in probe, CZ550

Thermocouple "K" stick-in probe, CZ550

Temperature range: -65 to 550°C
code CZ550
Price 490.00 AED
In stock 1 pcs
Thermocouple "K" stick-in probe, CZ900

Thermocouple "K" stick-in probe, CZ900

Temperature range: -65 to 1000°C
code CZ900
Price 490.00 AED
In stock 1 pcs
Thermocouple "K" wire probe, GD1250, with connector

Thermocouple "K" wire probe, GD1250, with connector

Temperature range: -65 to 980°C
code GD1250-1
Price 260.00 AED
In stock on request
Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Temperature range: -65 to 980°C
code GD1250-2
Price 410.00 AED
In stock on request
Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Temperature range: -65 to 980°C
code GD1250-3
Price 560.00 AED
In stock on request
Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Temperature range: -65 to 980°C
code GD1250-4
Price 740.00 AED
In stock on request
Thermocouple "K" wire probe, GD260, with connector

Thermocouple "K" wire probe, GD260, with connector

Temperature range: -65 to 260°C
code GD260-1
Price 150.00 AED
In stock on request
Thermocouple "K" wire probe, GD260, with connector, 2 meters

Thermocouple "K" wire probe, GD260, with connector, 2 meters

Temperature range: -65 to 260°C
code GD260-2
Price 230.00 AED
In stock on request
Thermocouple "K" wire probe, GD260, with connector, 3 meters

Thermocouple "K" wire probe, GD260, with connector, 3 meters

Temperature range: -65 to 260°C
code GD260-3
Price 300.00 AED
In stock on request
Thermocouple "K" wire probe, GD260, with connector, 4 meters

Thermocouple "K" wire probe, GD260, with connector, 4 meters

Temperature range: -65 to 260°C
code GD260-4
Price 410.00 AED
In stock on request
Thermocouple "K" wire probe, GD700, with connector

Thermocouple "K" wire probe, GD700, with connector

Temperature range: -65 to 700°C
code GD700-1
Price 150.00 AED
In stock on request
Thermocouple "K" wire probe, GD700, with connector, 2 meters

Thermocouple "K" wire probe, GD700, with connector, 2 meters

Temperature range: -65 to 700°C
code GD700-2
Price 230.00 AED
In stock on request
Thermocouple "K" wire probe, GD700, with connector, 3 meters

Thermocouple "K" wire probe, GD700, with connector, 3 meters

Temperature range: -65 to 700°C
code GD700-3
Price 300.00 AED
In stock on request
Thermocouple "K" wire probe, GD700, with connector, 4 meters

Thermocouple "K" wire probe, GD700, with connector, 4 meters

Temperature range: -65 to 700°C
code GD700-4
Price 410.00 AED
In stock on request
Thermocouple "K" insertion probe, GT1150

Thermocouple "K" insertion probe, GT1150

Temperature range: -50 to 1150°C
code GT1150
Price 520.00 AED
In stock 4 pcs

Extension cable thermocouple "K"

Extension cable thermocouple "K"

code SNP03
Price 150.00 AED
In stock on request
Extension cable thermocouple "K" female connector

Extension cable thermocouple "K" female connector

code SNP03/0
Price 120.00 AED
In stock on request
Extension cable thermocouple "K", 2 meters

Extension cable thermocouple "K", 2 meters

code SNP06
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 2 meters

Extension cable thermocouple "K" female connector, 2 meters

code SNP06/0
Price On request
In stock on request
Extension cable thermocouple "K", 3 meters

Extension cable thermocouple "K", 3 meters

code SNP07
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 3 meters

Extension cable thermocouple "K" female connector, 3 meters

code SNP07/0
Price On request
In stock on request
Extension cable thermocouple "K", 4 meters

Extension cable thermocouple "K", 4 meters

code SNP08
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 4 meters

Extension cable thermocouple "K" female connector, 4 meters

code SNP08/0
Price On request
In stock on request
Extension cable thermocouple "K", 5 meters

Extension cable thermocouple "K", 5 meters

code SNP09
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 5 meters

Extension cable thermocouple "K" female connector, 5 meters

code SNP09/0
Price On request
In stock on request
Extension cable thermocouple "K", 6 meters

Extension cable thermocouple "K", 6 meters

code SNP10
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 6 meters

Extension cable thermocouple "K" female connector, 6 meters

code SNP10/0
Price On request
In stock on request
Extension cable thermocouple "K", 7 meters

Extension cable thermocouple "K", 7 meters

code SNP11
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 7 meters

Extension cable thermocouple "K" female connector, 7 meters

code SNP11/0
Price On request
In stock on request
Extension cable thermocouple "K", 8 meters

Extension cable thermocouple "K", 8 meters

code SNP12
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 8 meters

Extension cable thermocouple "K" female connector, 8 meters

code SNP12/0
Price On request
In stock on request
Extension cable thermocouple "K", 9 meters

Extension cable thermocouple "K", 9 meters

code SNP13
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 9 meters

Extension cable thermocouple "K" female connector, 9 meters

code SNP13/0
Price On request
In stock on request
Extension cable thermocouple "K", 10 meters

Extension cable thermocouple "K", 10 meters

code SNP14
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 10 meters

Extension cable thermocouple "K" female connector, 10 meters

code SNP14/0
Price On request
In stock on request
Extension cable thermocouple "K", 11 meters

Extension cable thermocouple "K", 11 meters

code SNP15
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 11 meters

Extension cable thermocouple "K" female connector, 11 meters

code SNP15/0
Price On request
In stock on request
Extension cable thermocouple "K", 12 meters

Extension cable thermocouple "K", 12 meters

code SNP16
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 12 meters

Extension cable thermocouple "K" female connector, 12 meters

code SNP16/0
Price On request
In stock on request
Extension cable thermocouple "K", 13 meters

Extension cable thermocouple "K", 13 meters

code SNP17
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 13 meters

Extension cable thermocouple "K" female connector, 13 meters

code SNP17/0
Price On request
In stock on request
Extension cable thermocouple "K", 14 meters

Extension cable thermocouple "K", 14 meters

code SNP18
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 14 meters

Extension cable thermocouple "K" female connector, 14 meters

code SNP18/0
Price On request
In stock on request
Extension cable thermocouple "K", 15 meters

Extension cable thermocouple "K", 15 meters

code SNP19
Price On request
In stock on request
Extension cable thermocouple "K" female connector, 15 meters

Extension cable thermocouple "K" female connector, 15 meters

code SNP19/0
Price On request
In stock on request

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
Price 120.00 AED
In stock 141 pcs
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
Price 120.00 AED
In stock 9 pcs
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us
Price 120.00 AED
In stock 40 pcs

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price 260.00 AED
In stock on request

300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price 260.00 AED
In stock 6 pcs

Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Price 190.00 AED
In stock 4 pcs
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003
Price 80.00 AED
In stock 4 pcs
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Price 80.00 AED
In stock 1 pcs

COMET Database

COMET Database

code CDB
Price 2 780.00 AED
In stock yes
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Price FREE
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price 490.00 AED
In stock yes

Adapter for easy connection U/I signals to Multilogger

Adapter for easy connection U/I signals to Multilogger

code MLP006
Price 150.00 AED
In stock 3 pcs
External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
Price 150.00 AED
In stock 2 pcs

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
2.24 MB
download-icon Quick Start Manual
1,009.40 KB
download-icon Declaration of Conformity
58.20 KB
download-icon MIB
577.77 KB

Catalogs

download-icon CATALOG - Multilogger
1.24 MB
download-icon Catalogue Sheets - COMET Multiloggers
1.13 MB

Related products

Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

code M1200E
Price 2 710.00 AED
In stock 6 pcs
Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS6D
Price 7 440.00 AED
In stock 1 pcs
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140
Price 4 700.00 AED
In stock 2 pcs
Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

code M1220
Price 4 700.00 AED
In stock on request
Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

code M1320
Price 4 700.00 AED
In stock 5 pcs
Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

code M1321
Price 5 070.00 AED
In stock 2 pcs
Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

code M1322
Price 5 480.00 AED
In stock on request
Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

code M1323
Price 5 890.00 AED
In stock on request
Ethernet Multilogger - universal datalogger with 4 inputs

Ethernet Multilogger - universal datalogger with 4 inputs

code M1300
Price 4 700.00 AED
In stock 1 pcs

Contact

COMET MIDDLE EAST
Tracey Revington



E-mail: info@comet-uae.com

Telephone customer support
Phone: +971 50 558 0344

We produce

COMET MIDDLE EAST specialises in the supply, and implementation of cold chain management solutions. With many years’ experience in cold chain management, COMET has grown globally by adding innovative products to the market, these include: SMS notification, 4G and IOT Remote Data Access, Online Data Hosting, IOT sensors with various communication mediums for various monitoring and alarming solutions.

We have a number of distribution points throughout the globe.

We offer a wide range of products from Hand Held devices and Loggers, to fully integrated Temperature, Humidity, CO2 and Pressure monitoring, recording, alarming and notifying systems.

The Success of COMET to date has resulted from the delivery of high end products and solutions to various industrial sectors with continued attention to customer service.
