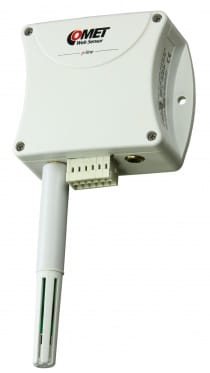

P-line Web Sensor for measuring temperature, relative humidity and three binary inputs for two-states signals. Remote alarm.

The devices are equipped with two connectors for connection of the temperature and humidity external probes and three binary inputs for two-states signals. The dry contact or two-state voltage signal can be connect to the binary input.

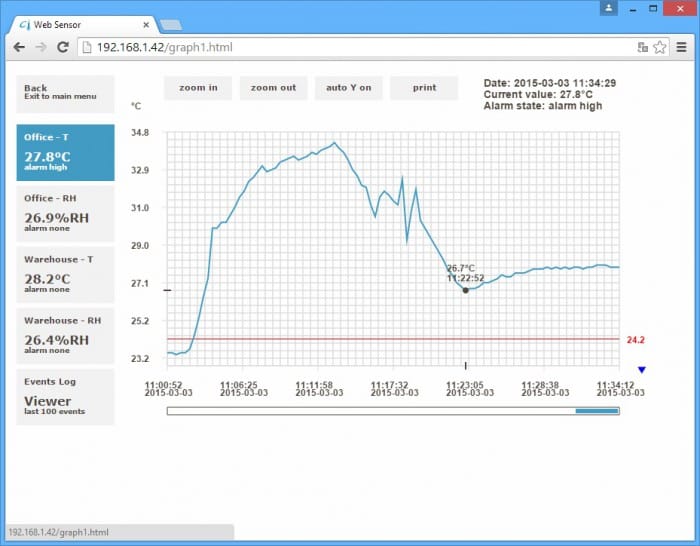

Processing and analysis of measured data:







  • code
    P8552
  • Warranty
    3 years
  • 1 040.00 AED
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Two-state signal

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

BINARY INPUT

Parameters of the voltage contact Voltage input level for „L“:< 1,0 V;
Voltage input level for „H“:> 2,5 V;
Internal resistivity of the voltage source < 2kOhm
Input voltage range 0 to +30 V
Parameters of the voltage-free contact Voltage on the unclosed contact 3,3 V
Current through closed contact 0,1 mA
Maximum resistivity of the contact < 5kOhm

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 5 Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 125 g
Warranty 3 years

Optional accessories and download

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

code DST/C
Price 260.00 AED
In stock 10 pcs
Digital temperature probe DSTGL40/C, CINCH connector

Digital temperature probe DSTGL40/C, CINCH connector

Temperature range: -30 to 80°C
code SN189C
Price 300.00 AED
In stock on request
Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN190C
Price 300.00 AED
In stock 8 pcs
Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN191C
Price 300.00 AED
In stock 25 pcs
Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN192C
Price 340.00 AED
In stock 19 pcs
Digital temperature probe DSTR162/C, CINCH connector

Digital temperature probe DSTR162/C, CINCH connector

Temperature range: -30 to 80°C
code SN215C
Price 260.00 AED
In stock 14 pcs
Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN216C
Price 260.00 AED
In stock 21 pcs
Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN217C
Price 300.00 AED
In stock 20 pcs
Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN218C
Price 300.00 AED
In stock 14 pcs
Digital temperature probe DSTG8/C, CINCH connector

Digital temperature probe DSTG8/C, CINCH connector

Temperature range: -50 to 125°C
code SN228C
Price 300.00 AED
In stock 32 pcs
Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Temperature range: -50 to 125°C
code SN229C
Price 300.00 AED
In stock 11 pcs
Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Temperature range: -50 to 125°C
code SN230C
Price 370.00 AED
In stock 47 pcs
Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Temperature range: -50 to 125°C
code SN231C
Price 520.00 AED
In stock 49 pcs

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Temperature range: 0 to 50°C
code DSRH/C
Price 490.00 AED
In stock on request
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Temperature range: 0 to 50°C
Discontinued
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Temperature range: 0 to 50°C
code DSRH01+
Price On request
In stock 8 pcs
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Temperature range: 0 to 50°C
Discontinued
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Temperature range: 0 to 50°C
code DSRH02+
Price 710.00 AED
In stock 15 pcs
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Temperature range: 0 to 50°C
Discontinued
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Temperature range: 0 to 50°C
code DSRH05+
Price 780.00 AED
In stock on request

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
Price 120.00 AED
In stock 91 pcs
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
Price 120.00 AED
In stock 8 pcs
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us
Price 120.00 AED
In stock 40 pcs

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price 260.00 AED
In stock on request
Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price 370.00 AED
In stock on request

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Price 1 110.00 AED
In stock on request
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
Price 230.00 AED
In stock 15 pcs
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price 260.00 AED
In stock 6 pcs

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046
Price 120.00 AED
In stock 45 pcs
Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code MP047
Price 80.00 AED
In stock 35 pcs
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Price 80.00 AED
In stock 3 pcs

COMET Database

COMET Database

code CDB
Price 2 780.00 AED
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
Price On request
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price 490.00 AED
In stock yes

Motion detector JS20

Motion detector JS20

code JS20
Price 300.00 AED
In stock 5 pcs
The LD-12 flood detector

The LD-12 flood detector

code LD12
Price 230.00 AED
In stock 41 pcs
Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Price 80.00 AED
In stock 55 pcs
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Price 150.00 AED
In stock on request
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Price 190.00 AED
In stock on request
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Price 80.00 AED
In stock on request
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Price 230.00 AED
In stock on request
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
Price 300.00 AED
In stock on request
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
Price 120.00 AED
In stock on request
The optical smoke detector SD-283ST

The optical smoke detector SD-283ST

code SD280
Price 450.00 AED
In stock on request
Power detector SP008

Power detector SP008

code SP008
Price 190.00 AED
In stock 1 pcs

Screwdriver for WAGO terminals 3.5mm

Screwdriver for WAGO terminals 3.5mm

code MP031
Price 80.00 AED
In stock on request

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon Virtual Channels Unlock for P8xxx
703.00 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.26 MB
download-icon Quick Start Manual
879.46 KB
download-icon Declaration of Conformity
102.98 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
577.77 KB
download-icon Software development kit (SDK)
48.18 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon Catalogue Sheets - COMET Economy WebSensors
1.33 MB

Related products

COMET Database

COMET Database

code CDB
Price 2 780.00 AED
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price 490.00 AED
In stock yes
Web Sensor with PoE - two channels with binary inputs

Web Sensor with PoE - two channels with binary inputs

code P8652
Price 1 230.00 AED
In stock 2 pcs
Web Sensor - remote thermometer

Web Sensor - remote thermometer

code P8510
Price 1 000.00 AED
In stock 9 pcs
Web Sensor - one channel remote thermometer hygrometer

Web Sensor - one channel remote thermometer hygrometer

code P8511
Price 860.00 AED
In stock 2 pcs
WebSensor - remote thermometer with Ethernet interface

WebSensor - remote thermometer with Ethernet interface

code T4511
Price 1 260.00 AED
In stock 5 pcs
Wireless thermometer with two two-state inputs, Sigfox IoT

Wireless thermometer with two two-state inputs, Sigfox IoT

code W0850
Price 1 230.00 AED
In stock on request
IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 2G modem

IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 2G modem

code U7844M
Price 3 260.00 AED
In stock 4 pcs
Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

code M1320
Price 4 700.00 AED
In stock 5 pcs

Contact

COMET MIDDLE EAST
Tracey Revington



E-mail: info@comet-uae.com

Telephone customer support
Phone: +971 50 558 0344

We produce

COMET MIDDLE EAST specialises in the supply, and implementation of cold chain management solutions. With many years’ experience in cold chain management, COMET has grown globally by adding innovative products to the market, these include: SMS notification, 4G and IOT Remote Data Access, Online Data Hosting, IOT sensors with various communication mediums for various monitoring and alarming solutions.

We have a number of distribution points throughout the globe.

We offer a wide range of products from Hand Held devices and Loggers, to fully integrated Temperature, Humidity, CO2 and Pressure monitoring, recording, alarming and notifying systems.

The Success of COMET to date has resulted from the delivery of high end products and solutions to various industrial sectors with continued attention to customer service.
