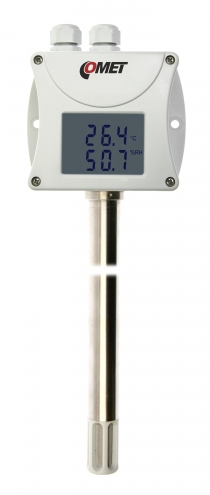

Temperature and humidity bar type transmitter with RS485 output

Temperature and humidity bar type transmitter with RS485 output

Humidity, temperature transmitter. Outdoor, indoor use. Bar type.

Relative humidity, temperature sensors at 700mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.



  • code
    T3417
  • Warranty
    3 years
  • 1 710.00 AED
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +125 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output RS485
Range of humidity sensor temperature compensation all temperature range
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol ModBus RTU, ARION, Advantech ADAM
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 88,5 x 94 x 39,5 mm; stem length 700 mm
Weight approx. 580 g
Warranty 3 years

Optional accessories and download

Ac/dc adapter 12V/450mA stabilized, EU

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu
Price 120.00 AED
In stock 43 pcs
Ac/dc adapter 12V/450mA stabilized, UK

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk
Price 120.00 AED
In stock on request
Ac/dc adapter 12V/450mA stabilized, US

Ac/dc adapter 12V/450mA stabilized, US

code A1510us
Price 120.00 AED
In stock on request

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price 370.00 AED
In stock on request

sintered bronze sensor protection

sintered bronze sensor protection

code F0000
Price 150.00 AED
In stock on request
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
Price 120.00 AED
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price 260.00 AED
In stock on request

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price 450.00 AED
In stock 18 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price 450.00 AED
In stock 16 pcs
Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Price 120.00 AED
In stock on request
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price 300.00 AED
In stock 10 pcs
PP4 Flat circular flange

PP4 Flat circular flange

code PP4
Price 80.00 AED
In stock 67 pcs
PP90 Right-angled stainless steel flange

PP90 Right-angled stainless steel flange

code PP90
Price 80.00 AED
In stock 33 pcs
plastic gland for direct mounting of the humidity probe

plastic gland for direct mounting of the humidity probe

code SP004
Price 40.00 AED
In stock 31 pcs
Tool for easy connection to WAGO terminals 233 for serial output transmitters

Tool for easy connection to WAGO terminals 233 for serial output transmitters

code SP006
Price 40.00 AED
In stock 25 pcs
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL
Price 120.00 AED
In stock on request

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Sensor RS485/232 utility (1-0-0-18)
2.05 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon 3D model T3417
1.55 MB
download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
856.24 KB
download-icon Quick Start Manual
852.42 KB
download-icon Declaration of Conformity
103.18 KB
download-icon Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
508.93 KB

Catalogs

download-icon CATALOG - Digital sensors and regulators with serial RS485/RS232 output
7.49 MB
download-icon Catalogue Sheets - COMET Transmitters
1.17 MB
