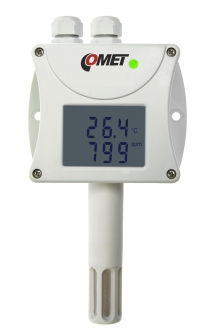

Temperature, humidity, CO2 transmitter with RS232 interface
Temperature, humidity, CO2 level sensor. Outdoor, indoor use.
Green LED shines - CO2 concentration 0 to 1000 ppm
Yellow LED shines - CO2 concentration 1001 to 1200 ppm
Red LED shines - CO2 concentration 1201 ppm and more
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeT6340
-
Warranty3 years
- 2 220.00 AED
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
CO2
TEMPERATURE SENSOR
Measuring range
-10 to +50 °C
Accuracy
±0.5 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
5 to 95 % RH
Accuracy
± 2,5 % RH
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.6°C at ambient temperature T<25°C and RH>30%
Resolution
0.1 °C
CO2 SENSOR
Measuring range
0 to 2000 ppm
Accuracy
±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution
1 ppm
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal temperature, humidity and CO2 sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Range of humidity sensor temperature compensation
all temperature range
Output
RS232
Communication protocol
ModBus RTU and Advantech ADAM compatible protocol
Power
9-30 Vdc
Protection class
IP30 electronics, IP40 sensors
Dimensions
88,5 x 170 x 39,5 mm; stem length 75 mm
Weight
approx. 150 g
Warranty
3 years
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price
120.00 AED
In stock
36 pcs
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price
120.00 AED
In stock
on request
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price
120.00 AED
In stock
on request
Accredited temperature and relative humidity calibration
code
SLU003
Price
370.00 AED
In stock
on request
Accredited CO2 calibration
code
SLU015
Price
1 670.00 AED
In stock
on request
Surcharge for internal CO2 sensor range adjustment
code
SLU113
Price
300.00 AED
In stock
on request
Transducer USB/RS232 complete
code
MP006
Price
230.00 AED
In stock
8 pcs
sintered bronze sensor protection
code
F0000
Price
150.00 AED
In stock
on request
plastic sensor protection with stainless filter (gray)
code
F5200
Price
120.00 AED
In stock
on request
PTFE sensor protection, white
code
F5300
Price
260.00 AED
In stock
on request
Humidity Standard 10%RH, set 5pcs
code
HM023
Price
450.00 AED
In stock
16 pcs
Humidity Standard 80%RH, set 5pcs
code
HM024
Price
450.00 AED
In stock
14 pcs
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Price
120.00 AED
In stock
on request
Vessel for adjustment and calibration of humidity
code
MD046
Price
300.00 AED
In stock
10 pcs
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price
40.00 AED
In stock
22 pcs
Transmitter version with watertight male connector
code
TxxxxL
Price
120.00 AED
In stock
on request
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
3D model T6340
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - CO2
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Transmitters
