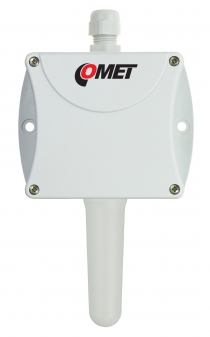

Temperature transmitter with 0-10V output, adjustable
Low cost ambient temperature transmitter with 0-10V output is built in a durable watertight case for outdoor and indoor use. Built-in precise temperature sensor. Output temperature range is user adjustable.
NEW - AC Power - now also powered from 24 Vac !
-
codeP0210
-
Warranty3 years
- 560.00 AED
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature sensor
Output
0 - 10 V
Available temperature units
degrees Celsius, degrees Fahrenheit
Configuration of output
user adjustable from PC; measured range + value
Power
15-30 Vdc; 24 Vac
Protection class
IP65
Dimensions
88,5 x 148 x 39,5 mm; stem length 53 mm
Weight
approx. 140 g
Warranty
3 years
Optional accessories and download
Accredited temperature calibration
code
SLU001
Price
260.00 AED
In stock
on request
COMETEO Professional Thermometer Screen for Weather Station Sensor
code
F8000
Price
1 410.00 AED
In stock
on request
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Price
120.00 AED
In stock
on request
Transmitter version with watertight male connector
code
TxxxxL
Price
120.00 AED
In stock
on request
