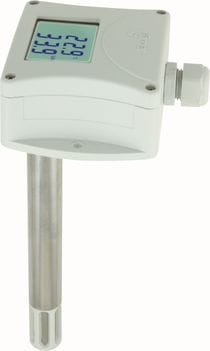

Temperature and humidity duct probe with 4-20mA output

Temperature and humidity duct probe with 4-20mA output

Humidity, temperature transmitter. Outdoor, indoor use. Duct mount.

Relative humidity, temperature sensors at 150mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.



  • code
    T3113D
  • Warranty
    3 years
  • 1 450.00 AED
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +125 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 88,5 x 95 x 195 mm; stem length 150 mm
Weight approx. 150 g
Warranty 3 years

Optional accessories and download

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price 370.00 AED
In stock on request

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003
Price 230.00 AED
In stock 65 pcs

sintered bronze sensor protection

sintered bronze sensor protection

code F0000
Price 150.00 AED
In stock on request
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
Price 120.00 AED
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price 260.00 AED
In stock on request

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price 450.00 AED
In stock 16 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price 450.00 AED
In stock 14 pcs
Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Price 120.00 AED
In stock on request
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price 300.00 AED
In stock 10 pcs
PP4 Flat circular flange

PP4 Flat circular flange

code PP4
Price 80.00 AED
In stock 41 pcs
PP90 Right-angled stainless steel flange

PP90 Right-angled stainless steel flange

code PP90
Price 80.00 AED
In stock 32 pcs
plastic gland for direct mounting of the humidity probe

plastic gland for direct mounting of the humidity probe

code SP004
Price 40.00 AED
In stock 31 pcs
Tool for easy connection to WAGO terminals 236 for analog output transmitters

Tool for easy connection to WAGO terminals 236 for analog output transmitters

code SP005
Price 40.00 AED
In stock 41 pcs
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL
Price 120.00 AED
In stock on request

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.14 MB
download-icon Quick Start Manual
803.98 KB
download-icon Declaration of Conformity
103.18 KB

Catalogs

download-icon CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
1.86 MB
download-icon Catalogue Sheets - COMET Transmitters
1.17 MB
