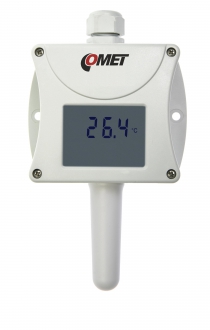

Temperature transmitter outdoor, indoor with 4-20mA output

Ambient temperature transmitter. Outdoor, indoor use.

Temperature transmitter with 4-20mA output for two-wire connection is built in a durable watertight case. Output temperature range is user adjustable. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off.



  • code
    T0110
  • Warranty
    3 years
  • 780.00 AED

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal temperature sensor
Output 4-20 mA
Available temperature units degrees Celsius, degrees Fahrenheit
Configuration of output user adjustable from PC; measured range + value
Power 9-30 Vdc
Protection class IP65
Dimensions 88,5 x 148 x 39,5 mm; stem length 53 mm
Weight approx. 140 g
Warranty 3 years
