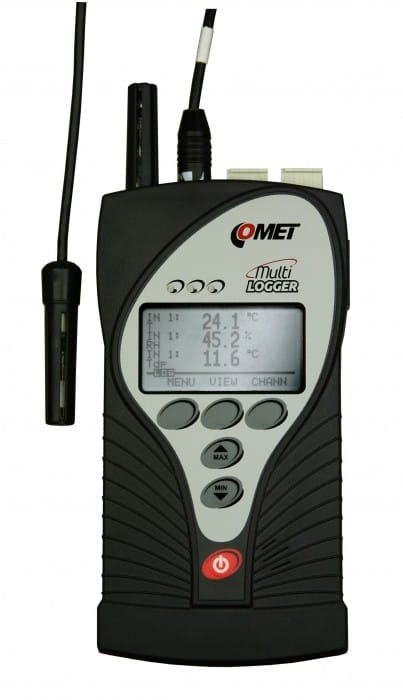

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals
Battery powered datalogger with built-in CO2 and atmospheric pressure sensor and 4 universal inputs for measurement of temperature, humidity, 0-10V voltage, 0-20mA current, two-state signal and for counting pulses.
Multilogger can be installed permanently to Ethernet network or work as portable device.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.
The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its inputs.
Datalogger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeM1323
-
Warranty3 years
- 5 890.00 AED
Technical data
Measured value
TEMPERATURE SENSOR - external probe Pt1000
±0.2 % from reading from +100 to +600 °C
TEMPERATURE+HUMIDITY SENSOR - external probe T+RH DIGI
DEW POINT
ATMOSPHERIC PRESSURE SENSOR
CO2 SENSOR
DC CURRENT
BINARY SIGNAL
COUNTER INPUT
GENERAL TECHNICAL DATA
2x binary, counter, voltage and current input
cyclic - after filling memory oldest data is overwritten by new
Optional accessories and download
- Temperature probes Pt1000
- Digital temperature+humidity probes
- Powering/Power supply
- Accredited calibration
- Communications and convertors
- Holders and fixings
- Monitoring software
- Detectors
